Description

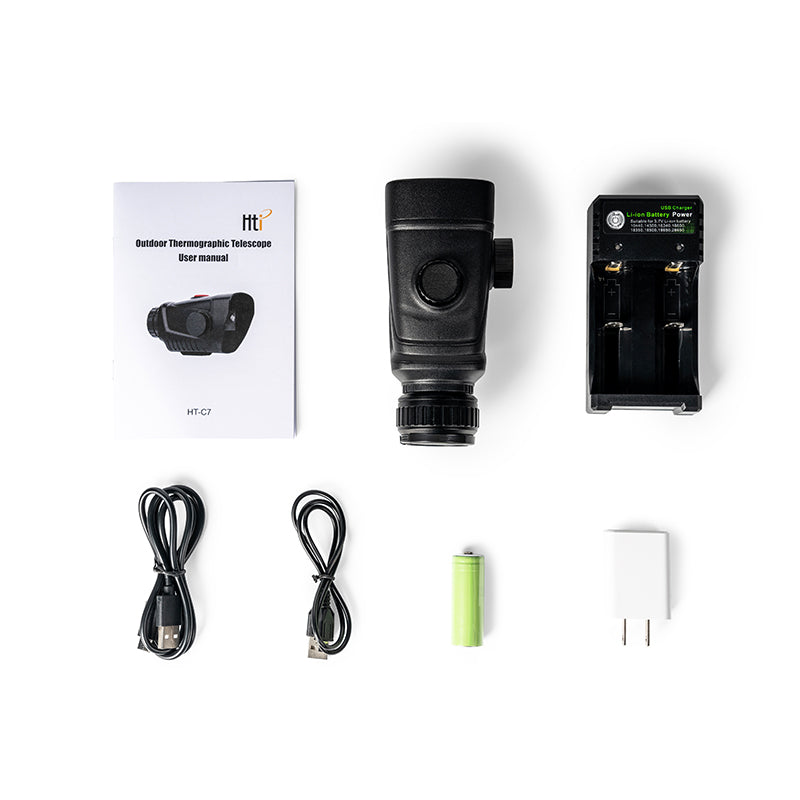

The streamlined button layout features a precise focusing wheel and customizable buttons, which are easily identifiable through touch, ensuring silent operation, one-handed operation, and cautious use in the dark. This product is a dual-purpose infrared thermal imager that can be used both during the day and at night. It is suitable for natural observation, search and rescue operations, outdoor exploration, maritime work, night patrols, and personal security protection.

Sensor
Type: Uncooled Vox
IR: 384×288
Pixel size: 12μm
NETD: ≤40mK @25℃,F#1.0
Frame rate: 50Hz

Lens
Objective lens: 25mm/F1.0/10.53°x7.91°
Magnification: 1.6×
Digital zoom: 1×/2×/4×/8×
Detection range: 1300m
Focusing mode: Manual

Display
Display screen type: LCD
Display resolution: 480×360
Display size: 2.0inch
Diopter:

Hardware
Photo: Supported

System
Colour Palettes: White heat, black heat, rainbow, hot metal, yellow saturation, bird watching mode
Storage (Built-in): 16G

Power
Detector Battery: Replaceable li-ion battery 1*18500/2040mAh
Battery life: ≥6h

Environmental
Working temperature: -20℃~+50℃
Waterproof Rating: IP54

Physical
Dimension: 187×67×67mm
Weight (without battery): 400g
