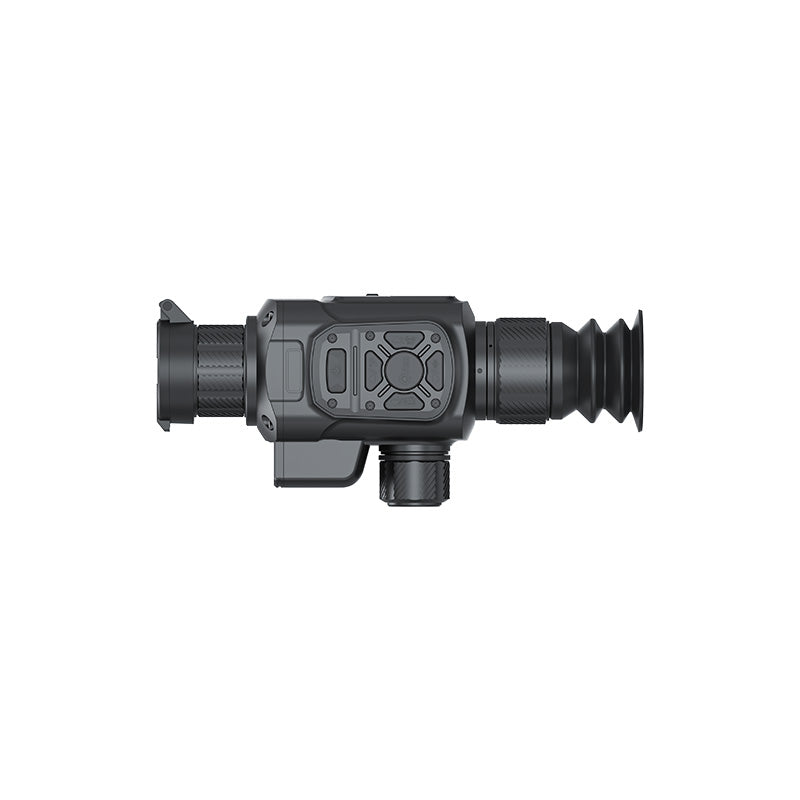

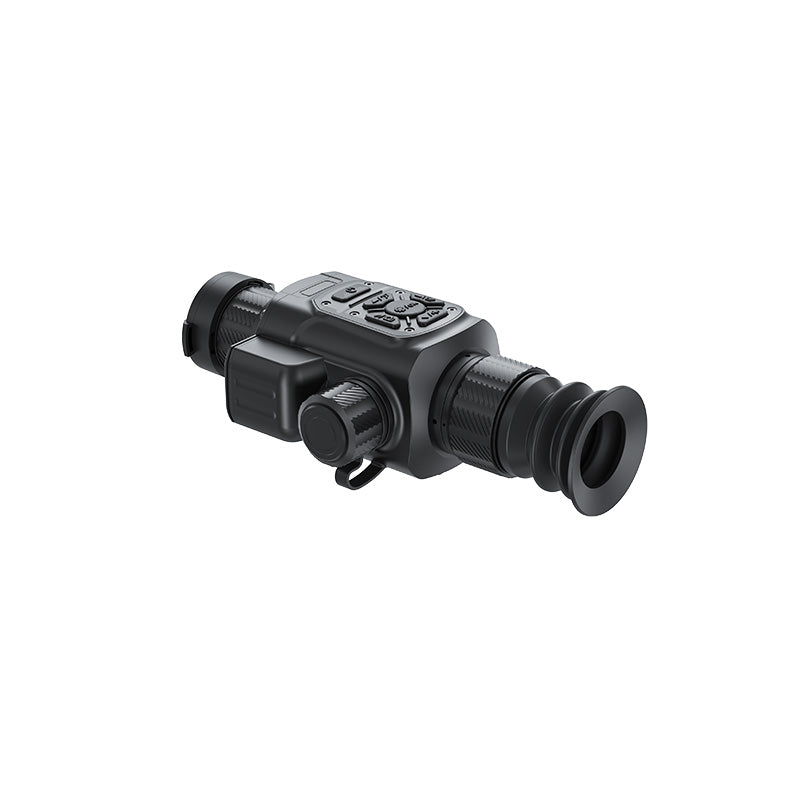

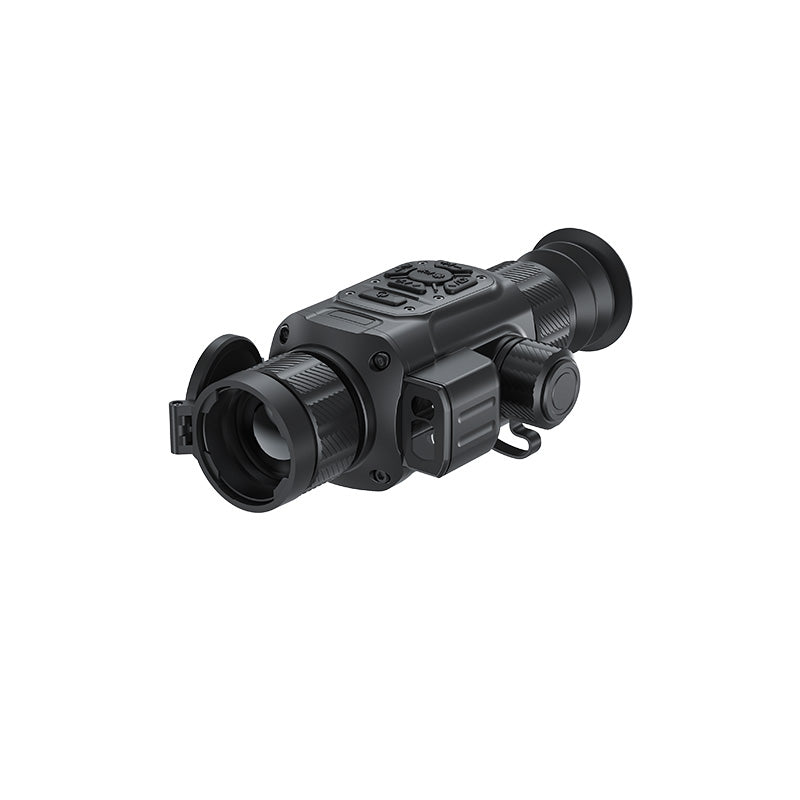

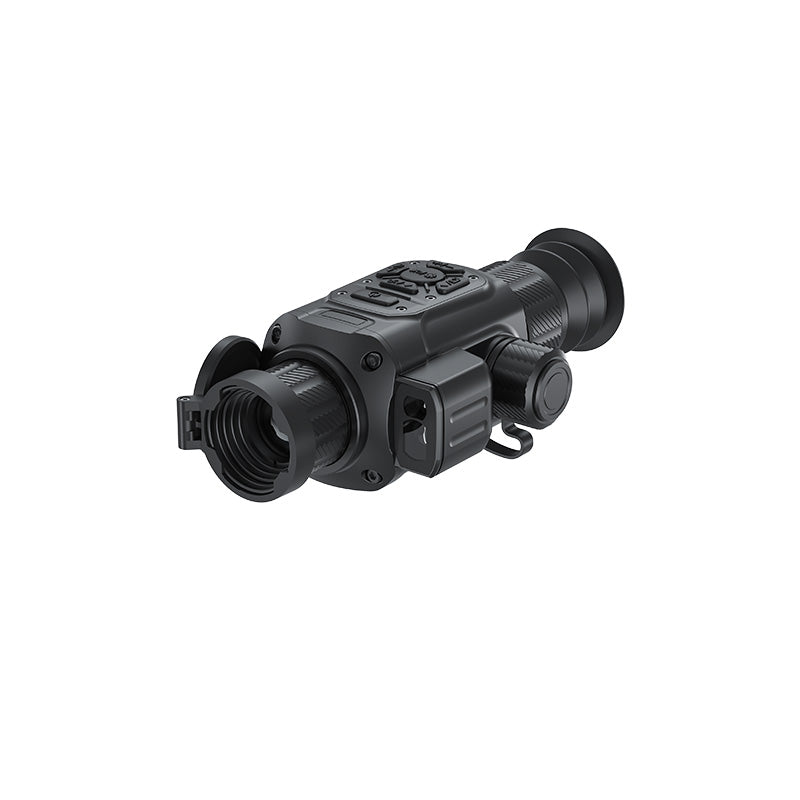

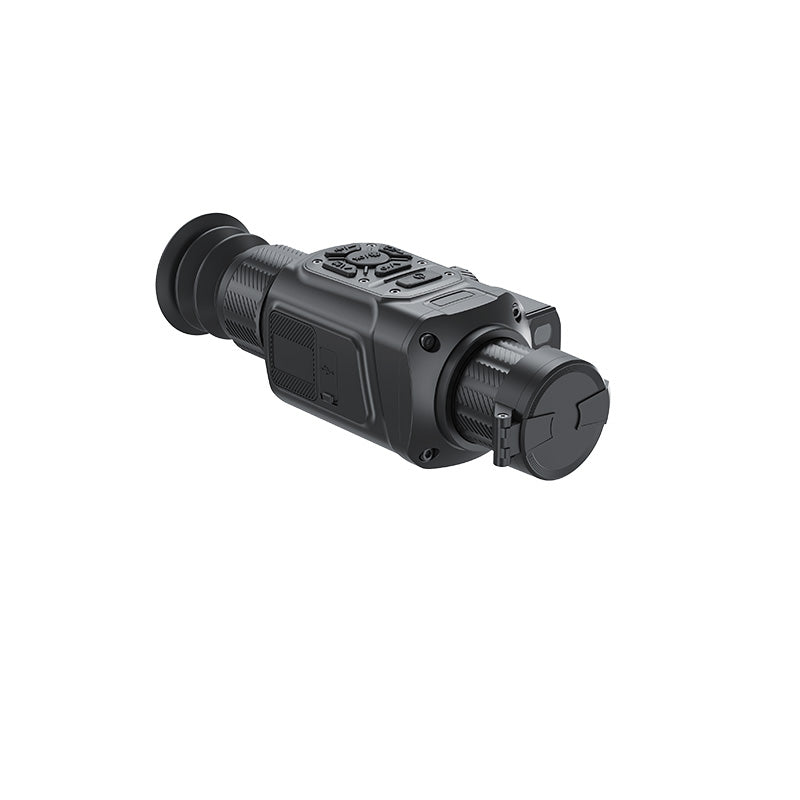

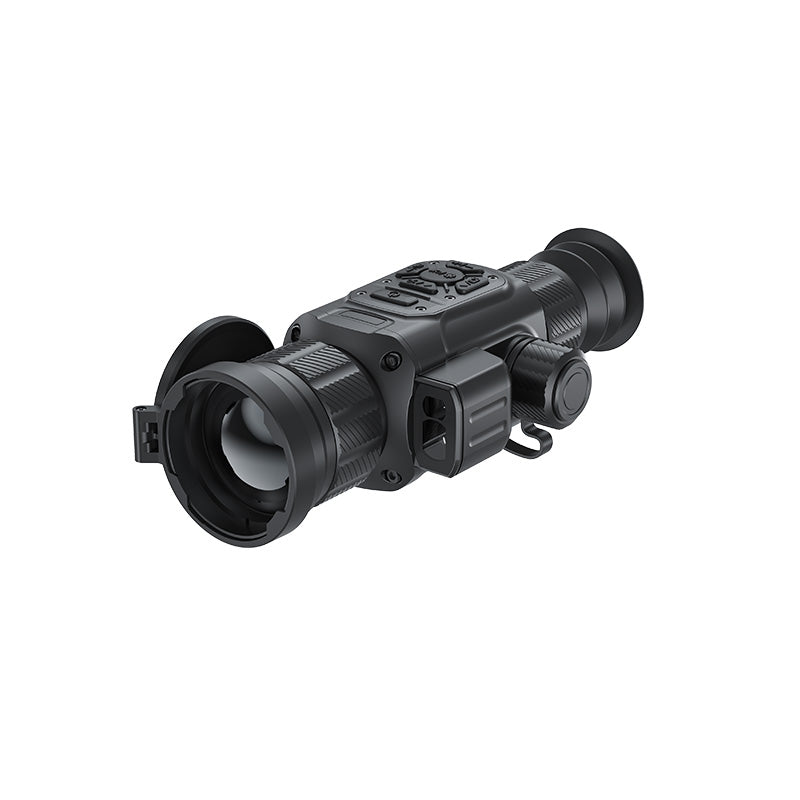

THERMAL IMAGING SIGHT HT-A1803

The BlazeHunter thermal monocular has a built-in Laser Range Finder for fast and precise distance measurement. Whether tracking wildlife or navigating rugged terrain, the LRF simplifies rangefinding, providing essential data without additional devices.

Detector
type: Uncooled Vox
IR: 640×512
Pixel size: 12μm
NETD: ≤25mK @25℃,F#1.0
Frame Rate: 50Hz

Lens
Focusing mode: Manual
Objective Lens: 50mm/F1.0/8.7°×7.0°
Detection range: 2600m
Magnification: 2.8×
Digital Zoom: 1×/2×/4×/8×

Display
Eye Relief: 36mm
Diopter: -5D~+5D
Display screen type: OLED
Display resolution: 1024×768
Display size: 0.39inch
Colour Palettes: White Hot, Black Hot, Red Hot, Rainbow, Iron red, Cool, Infrare

Hardware
LRF: 10m~1200m(905nm)
PIP: Supported
Hot trace: Supported
WiFi: Supported

System
Photo/Video: Supported
Storage (Built-in): 16G EMMC

Power
Battery: 1*18500/2000mAh
Battery life: ≤4.4h

Environmental
Working temperature: -20℃~+60℃
Waterproof Rating: IP66
Impact Test: 1000G

Physical
Dimension: 224x76x73mm
Weight (without battery): 705g
