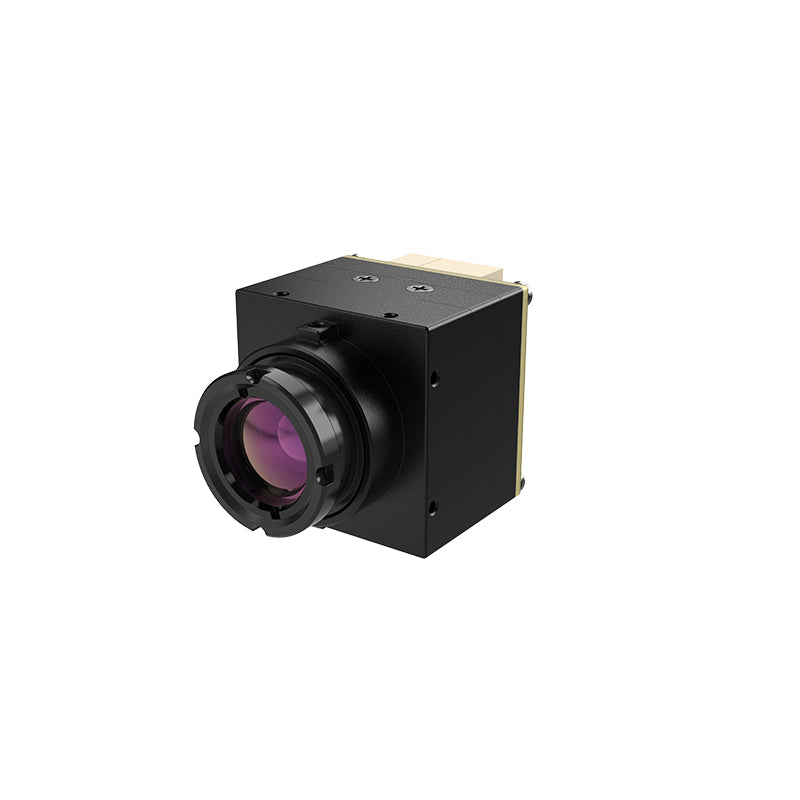

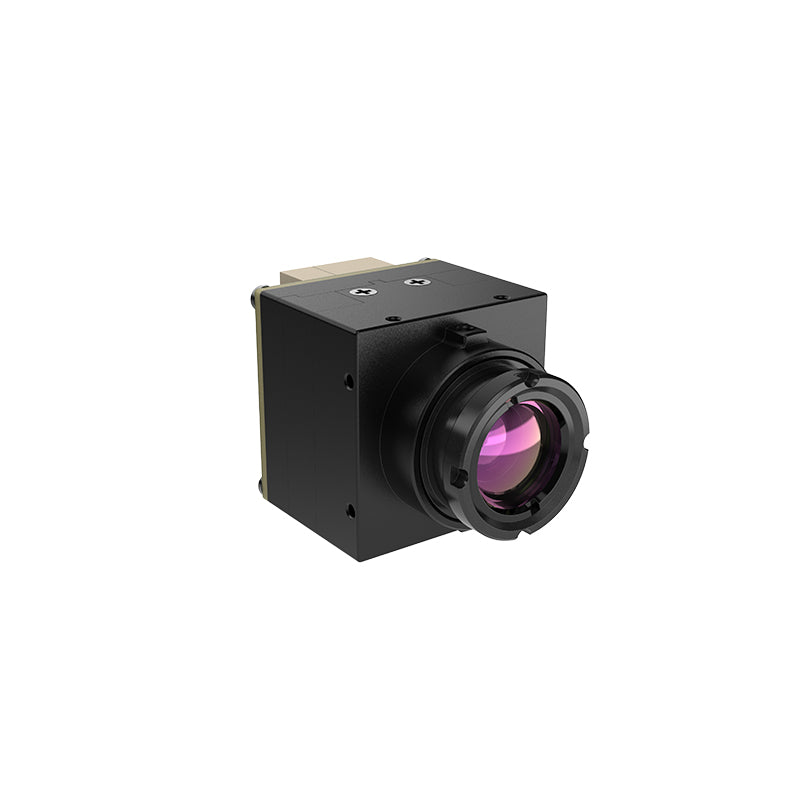

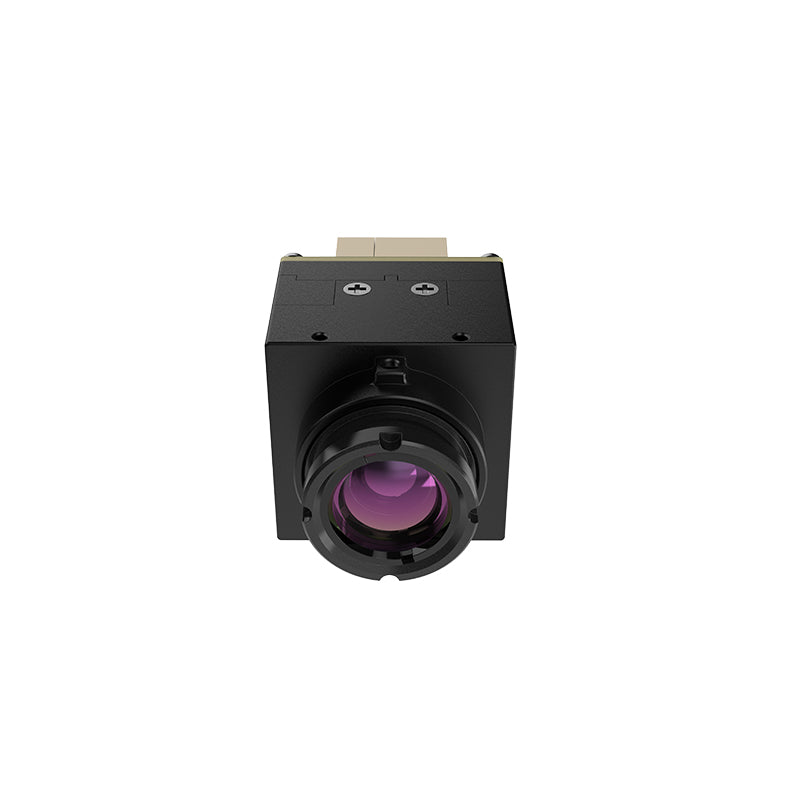

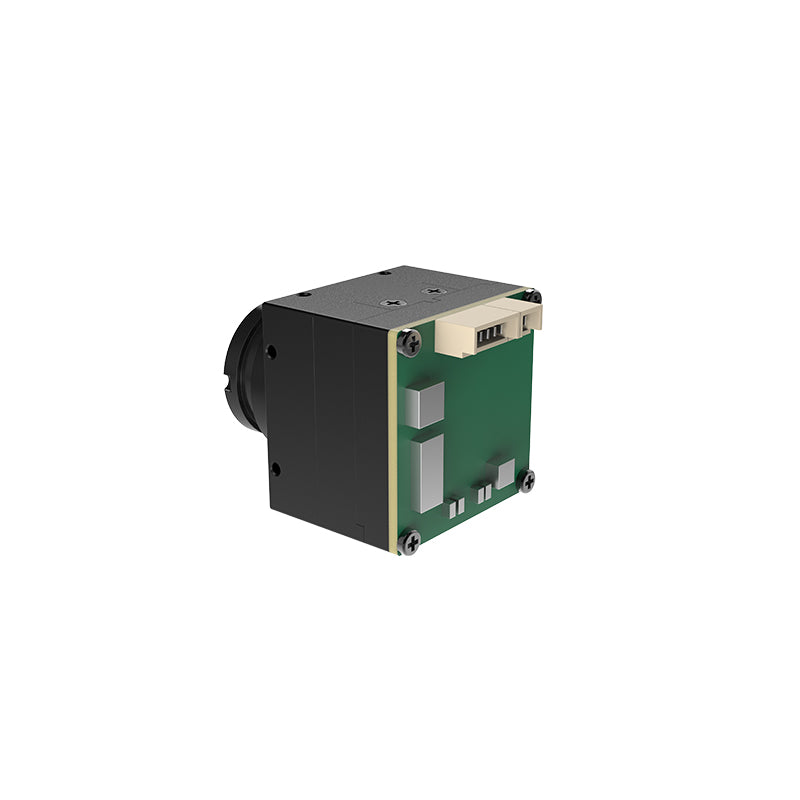

THERMAL IMAGING CAMERA HT-M06-0609C
THERMAL IMAGING CAMERA HT-M06-0609C
No se pudo cargar la disponibilidad de retiro
Description
IR:640×512
NETD: ≤40mK@25°C, F/1.0
Frame Rate: 50Hz
Pixel Size: 12μm
Objective Lens: 9.1mm/45.76°×37.31°
Focusing mode: Manual
Digital zoom: 1X/2X/4X/8X
Analog video output: CVBS
Colour Palettes: White heat, black heat, rainbow, red heat, red saturation, yellow saturation, cool color, iron red, faint light
Working Temperature: -30°C~+50°C
Storage Temperature: -40°C~+70°C
Dimension: 25×25×30mm
Weight: 31g
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions
Image with text
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
-
Free Shipping
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
-
Hassle-Free Exchanges
Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.
X235
Thermal Scope
Specifications
experience unparalleled image quality
High-Definition Imaging with All Details Revealed
1. Equipped with a 384×288 high-resolution infrared sensor and a 54mm professional lens, it delivers delicate thermal imaging maps.
2. The 1440×1080 ultra-clear display features sharp visuals and distinct temperature gradient layers.
Intelligent Zoom, Flexible Observation
1. 1x/2x/4x/8x electronic zoom allows clear capture of targets near and far.
2. The Picture-in-Picture (PIP) function enables local magnification while maintaining the global view without losing details.
Dynamic Capture, Precise Tracking
1. With a 50Hz high frame rate, it smoothly captures fast-moving targets.
2. Automatic hotspot tracking intelligently marks the highest temperature area for quick location of anomalies.
See X235
Thermal Scope in Action
| Table header 0 | MODEL | X235 |
|---|---|---|
| Detection distance | Characters | 2550m |
| Vehicles | 6750m | |
| Identification distance | Characters | 638m |
| Vehicles | 1688m |
