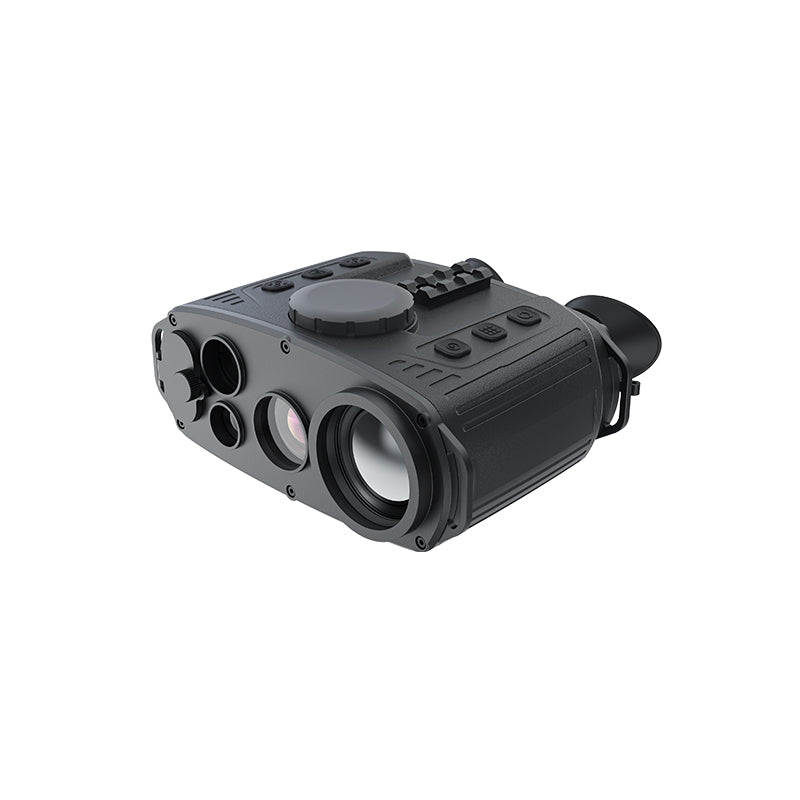

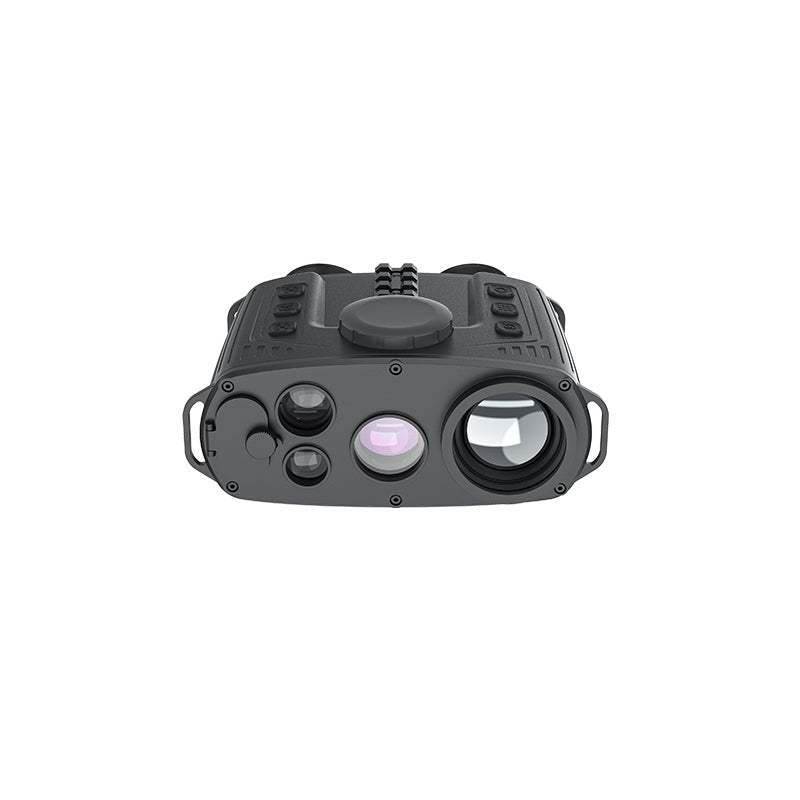

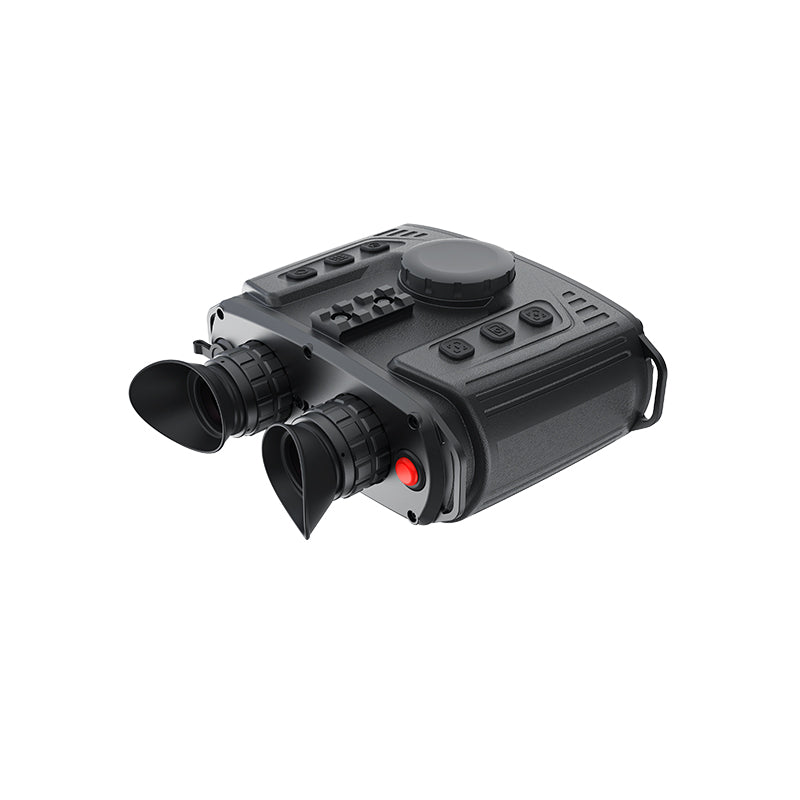

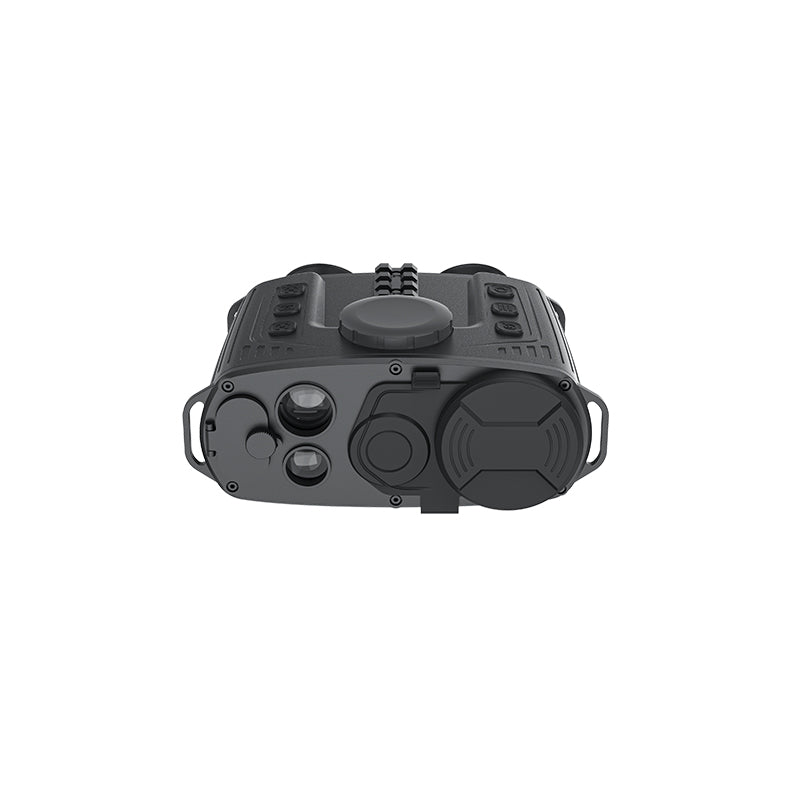

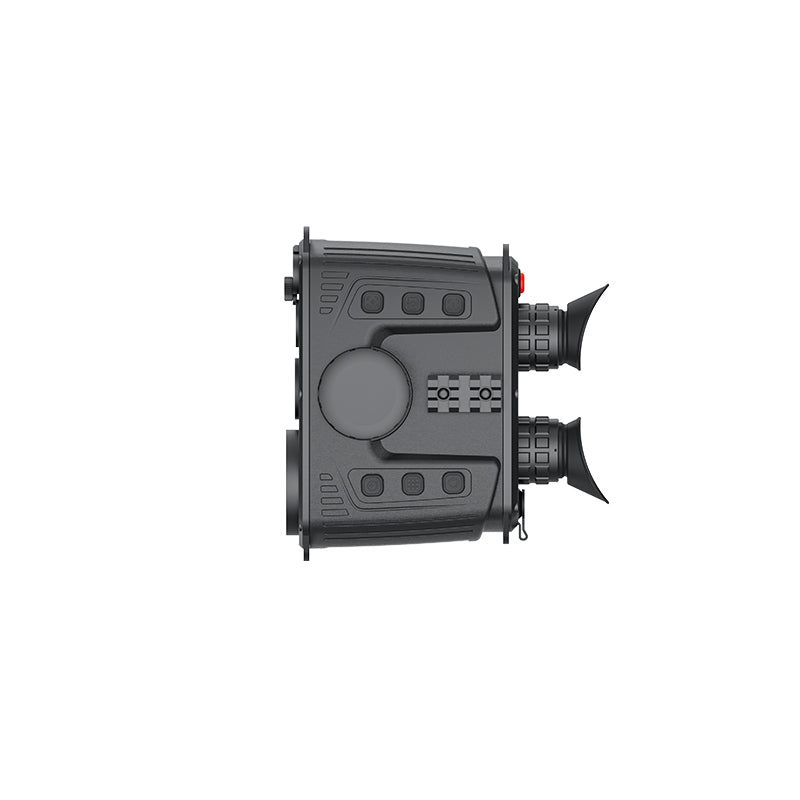

THERMAL IMAGING BINOCULARS HT-C690

Description

The distance-measuring dual-eye infrared thermal imaging telescope with ultra-high definition features a 50mm long-distance dual-eye optical lens, combined with a 1920×1080 high-definition OLED display, providing an astonishing stereoscopic thermal imaging experience. The 50Hz high frame rate ensures smooth dynamic images. Whether observing nocturnal wildlife or conducting long-distance terrain surveys, it offers an unprecedentedly clear view.

Sensor
Type: Uncooled Vox
Resolution: 384×288
Pixel size: 12μm
NETD: ≤40mK @25℃, F#1.0
Frame rate: 50Hz

Lens
Objective lens: 50mm/F1.0/5.3°×4.0°
Magnification: 4.1
Digital zoom: 1×/2×/4×
Detection range: 2600m

Focusing mode: Electric

Visible light

Resolution: 1920×1080

Display
Display screen type: OLED
Display resolution: 1024×768
Display size: 0.39 inch
Eye relief: 32mm
Diopter:-4D ~+4D

Hardware
LRF:10~2500m（905nm）

Photo/Video: supported

WIFI: supported
PIP: supported

System
Colour Palettes: Rainbow, iron red, cold color, white hot, black hot
Storage (Built-in):16G EMMC

Power
Battery: Replaceable li-ion batteries 2*186500/3200mAh
Battery life: ≤4h

Environmental
Working temperature: -20℃ ~ +50℃
Impact Test: 30G
Waterproof Rating: IP66

Physical
Dimension:192.8×86.9×189.6mm
Weight (without battery):1574g
