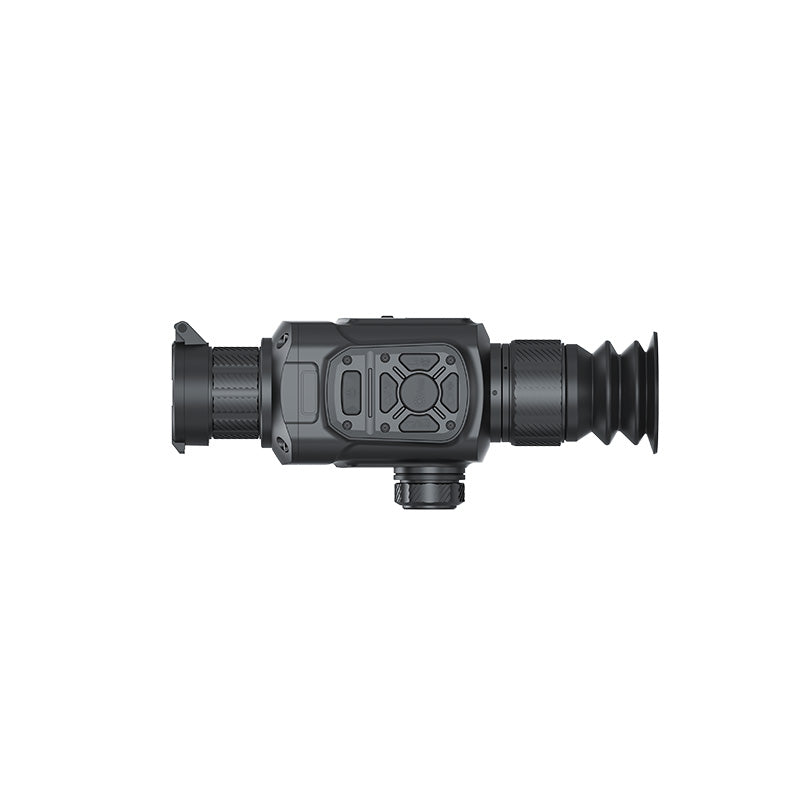

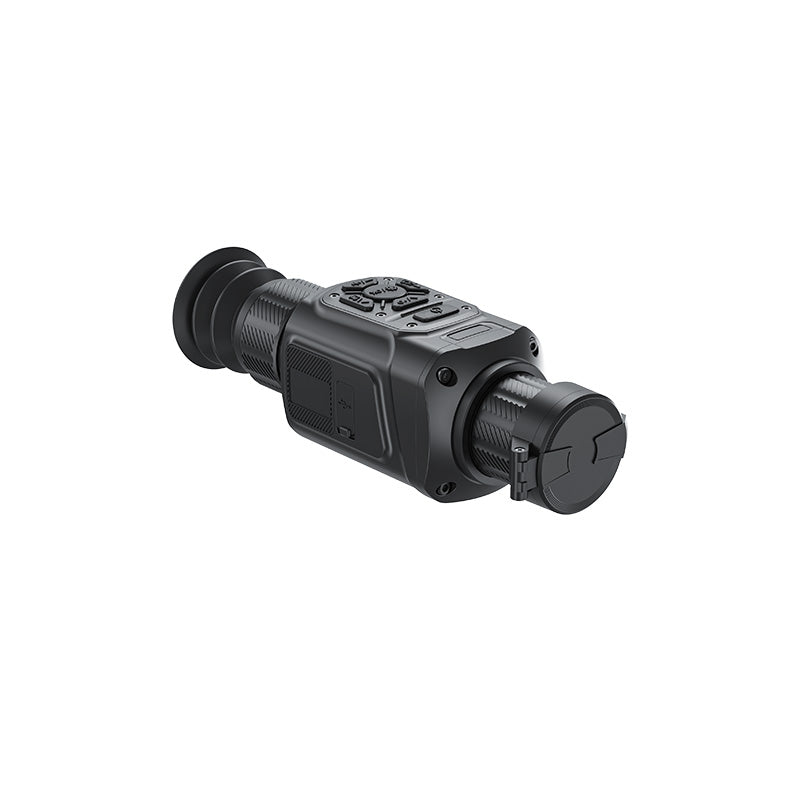

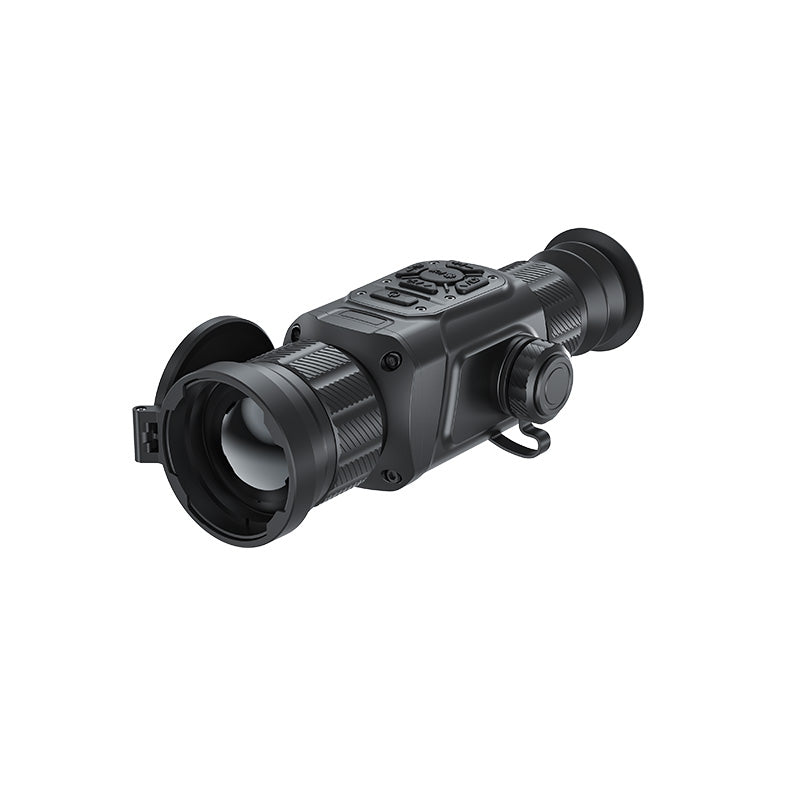

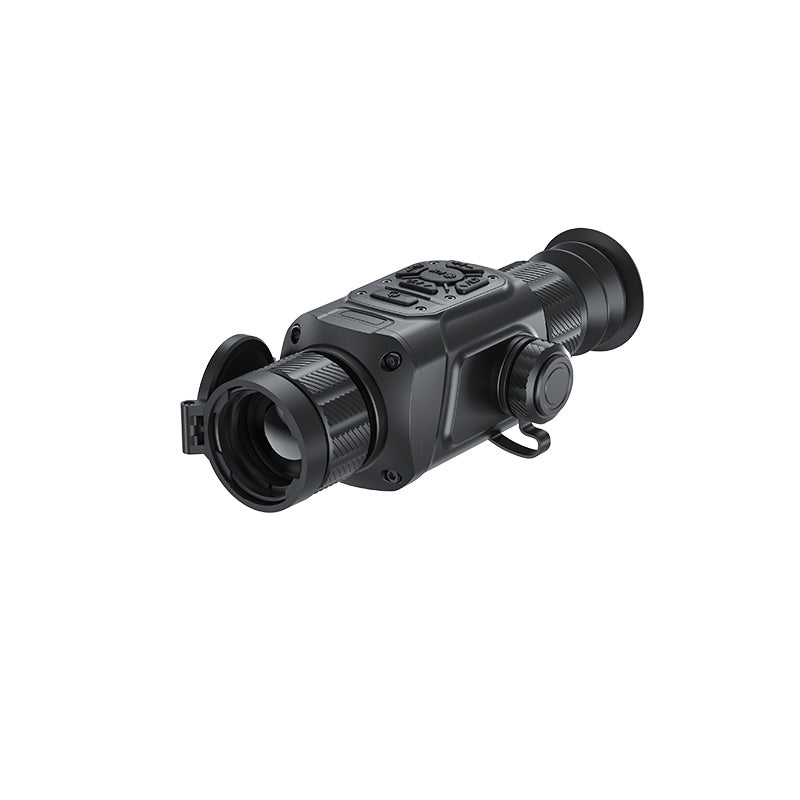

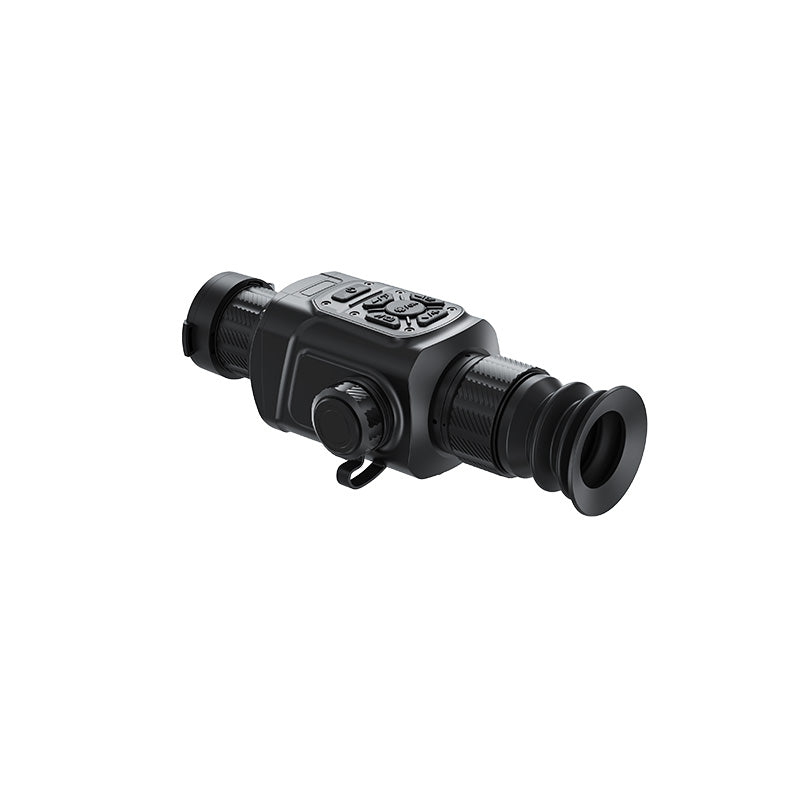

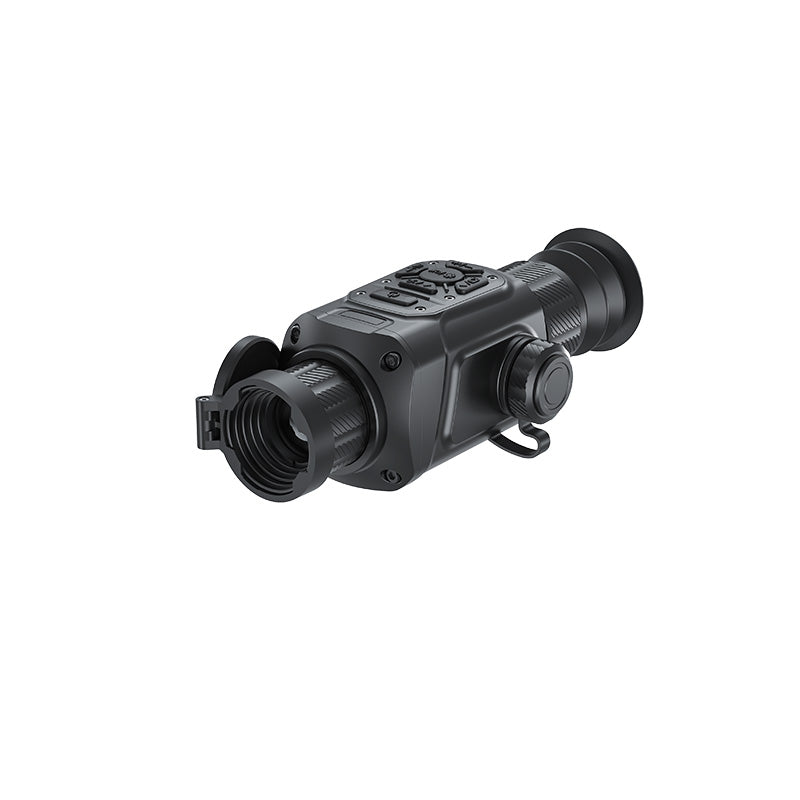

THERMAL IMAGING SIGHT HT-A1903

Description

Sensor
Type: Uncooled Vox
Resolution: 640×512
Pixel size: 12μm
NETD: ≤25mK @25℃, F#1.0
Frame rate: 50Hz

Lens
Objective lens: 50mm/F1.0/8.7°×7.0°
Magnification: 2.8x
Digital zoom: 1×/2×/4×/6×/8×
Detection range: 2600m

Display
Display screen type: OLED
Display resolution: 1024×768
Display size: 0.39 inch
Eye relief: 48 mm
Diopter: -6D~+4D

Hardware
WIFI: supported
PIP: supported

System
Recording function: Photo/Video
Storage (Built-in): 16 GB

Power
Battery: 1×18500, 2000mAh
Battery life: ≥4h

Environmental
Working temperature: -20°C to +60°C
Impact Test: 1000G
Waterproof Rating: IP66

Physical
Dimension: 224x76x73mm
Weight (without battery): 610g
