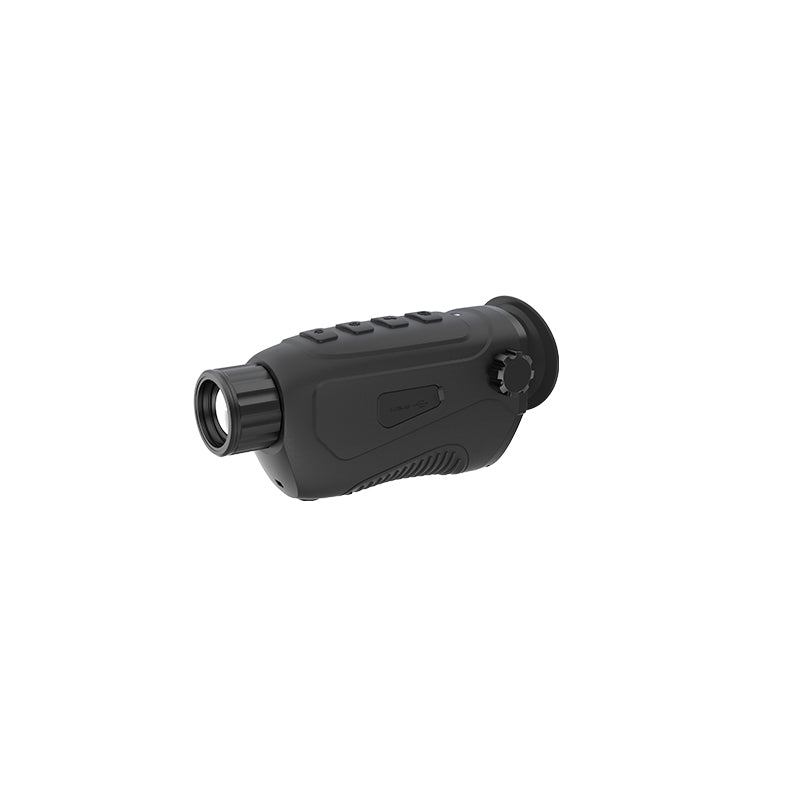

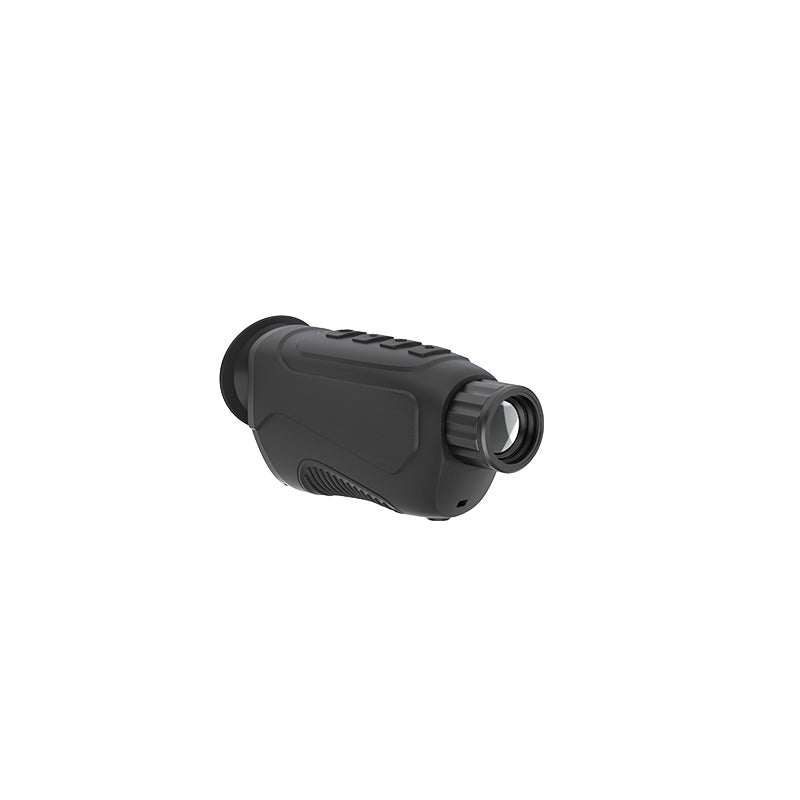

THERMAL IMAGING MONOCULAR HT-S302

The single-lens outdoor series integrates the core technology of infrared thermal thermometer, providing an ultimate night vision experience. It adopts advanced image algorithm optimization, with clear and smooth images without any ghosting. It supports intelligent adaptation in multiple scenarios.

The ergonomic grip design makes it comfortable to hold for a long time, and it can be quickly turned on and used for aiming and operation. It is widely applied in scenarios such as night duty, field investigation, security control, and outdoor events.

Sensor
Type: Uncooled Vox
Resolution: 384×288
Pixel size: 12μm
NETD: ≤30mK @25℃, F#1.0
Frame rate: 50Hz

Lens
Objective lens: 25mm/F1.0/7.5°×5.7°
Magnification: 2.7x
Digital zoom: 1×/2×/4×/8×
Detection range: 1300m

Display
Display screen type: OLED
Display resolution: 800×600
Display size: 0.32 inch
Diopter: -4D~+2D

Hardware
Photo/Video: supported
WIFI: supported
PIP: supported

System
Colour Palettes:White heat,black heat, r  ed heat, rainbow, iron red, cool color
Storage (Built-in):16G EMMC

Power
Battery:Replaceable li-ion battery 1*18650/3200mAh
Battery life:≤4h

Environmental
Working temperature: -20℃ ~ +60℃
Waterproof Rating:IP65

Physical
Dimension: 169.5x76.8x63mm
Weight (without battery):440g
