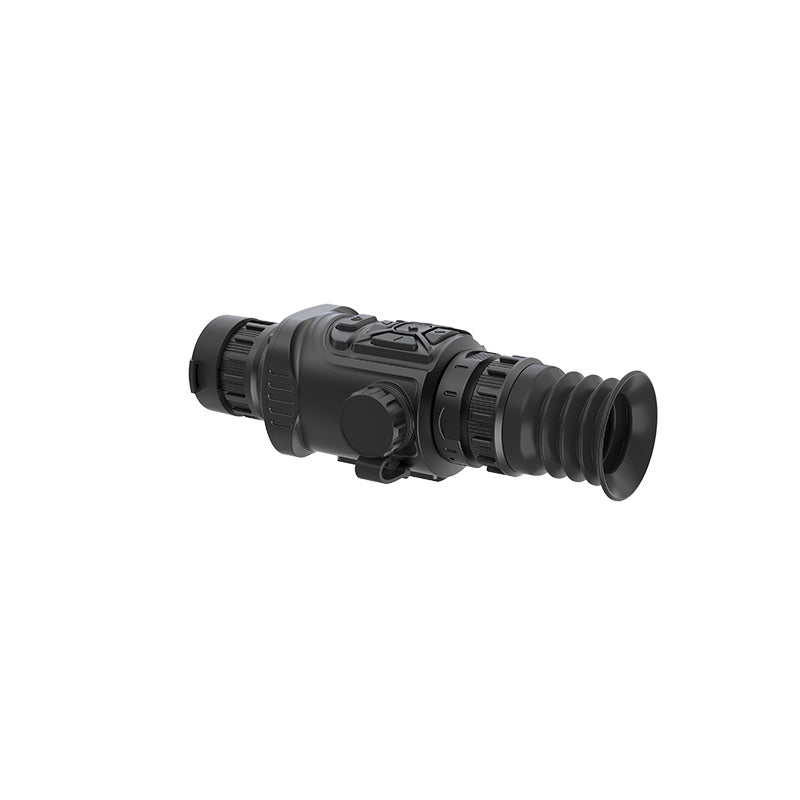

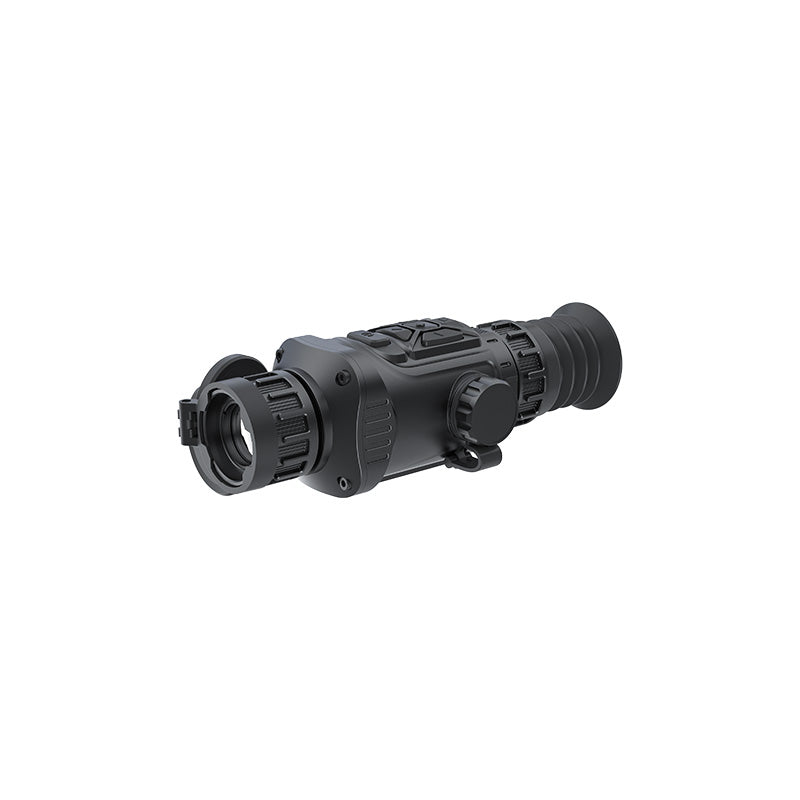

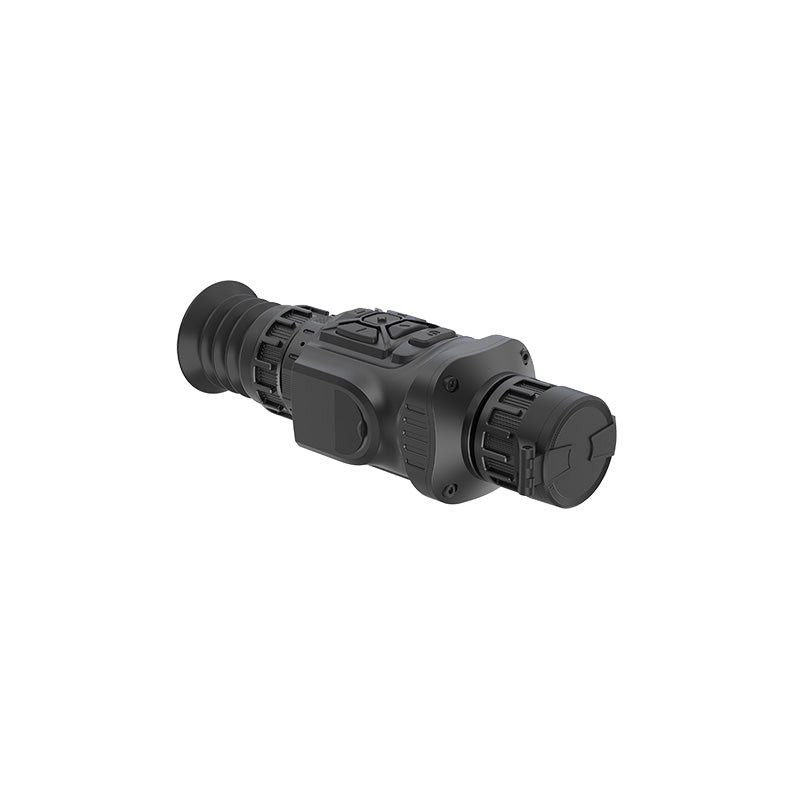

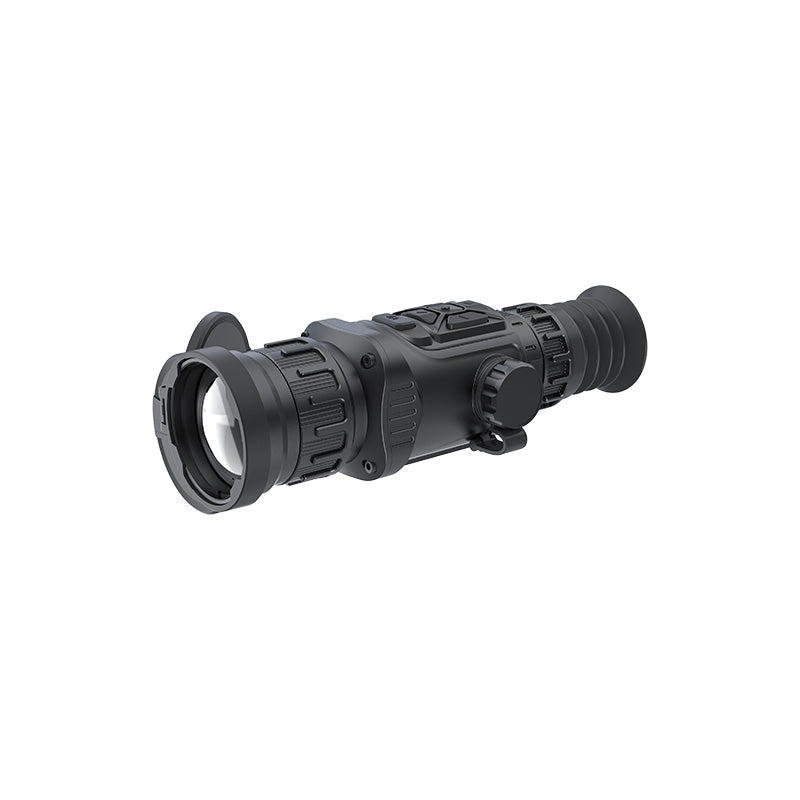

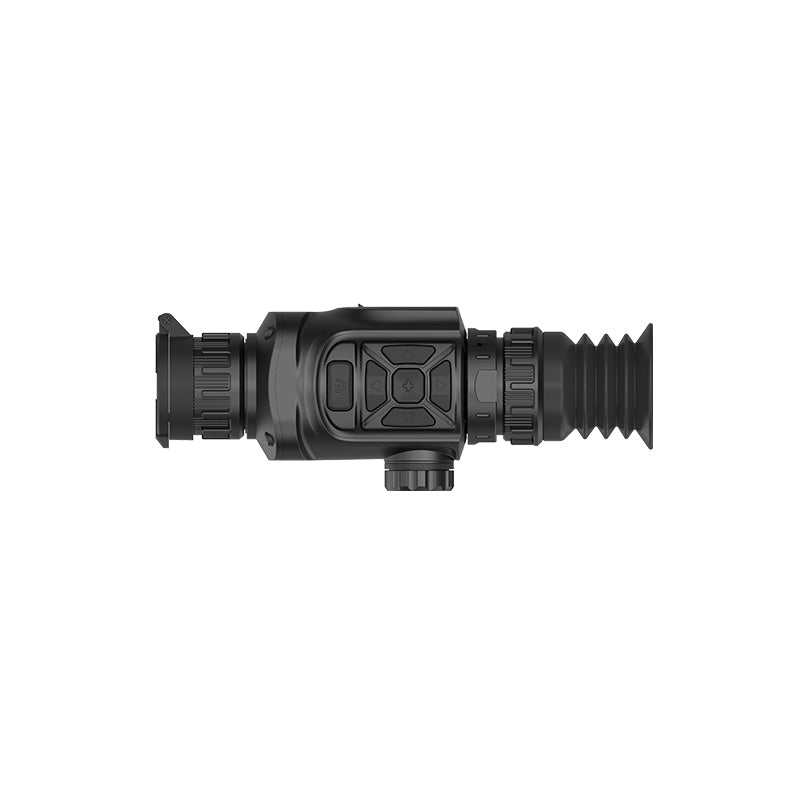

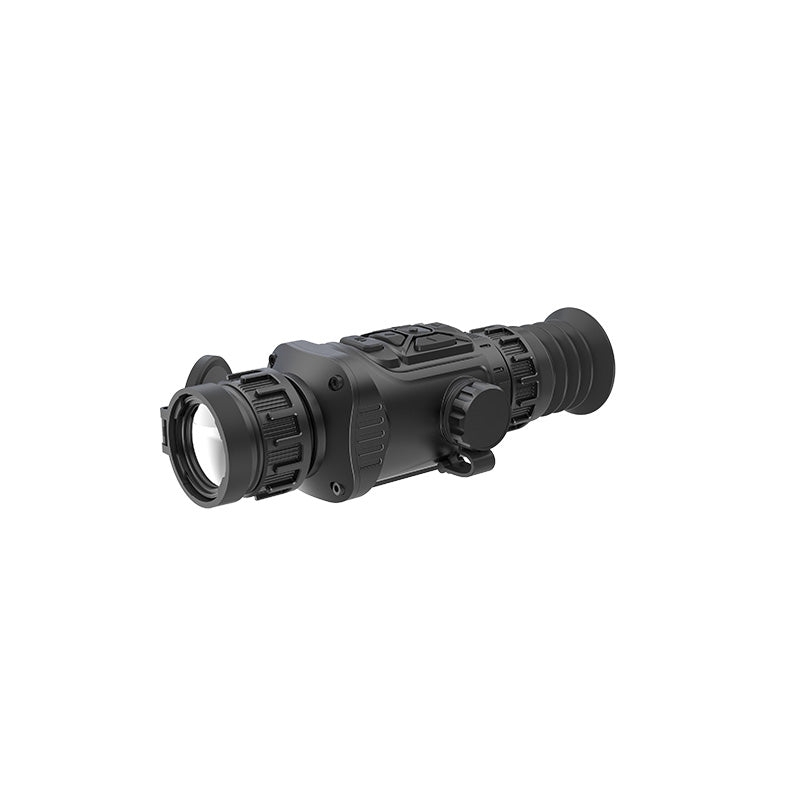

THERMAL IMAGING SIGHT HT-A203

Description

The high-performance thermal imager offers multiple resolution configurations such as 256×192, and a high frame rate of 50Hz ensures no delay in tracking dynamic targets. The 1024×768 AMOLED display, combined with electronic zoom (1x/2x/3x/4x/8x), achieves a perfect balance between observation distance and accuracy. It operates stably from -40℃ extreme cold to 70℃ extreme heat. It is widely used in border defense, maritime law enforcement, geological exploration, emergency rescue and other fields.

Detector
type: Uncooled Vox
IR: 640×512
Pixel size: 12μm
NETD: ≤25mK @25℃,F#1.0
Frame Rate: 50Hz

Lens
Focusing mode: Manual
Objective Lens: 35mm/F1.0/7.0°×5.4°
Detection range: 1820m
Magnification: 1.6×
Digital Zoom: 1×/2×/4×/8×

Display
Eye Relief: 36mm
Diopter: -5D~+5D
Display screen type: OLED
Display resolution: 1024×768
Display size: 0.39inch
Colour Palettes: White Hot, Black Hot, Red Hot, Rainbow, Iron red, Cool, Infrare

Hardware
LRF: 10m~1200m(905nm)
PIP: Supported
Hot trace: Supported
WiFi: Supported

System
Photo/Video: Supported
Storage (Built-in): 16G EMMC

Power
Battery: 1*18500/2000mAh
Battery life: ≤2.9h

Environmental
Working temperature: -20℃~+60℃
Waterproof Rating: IP66
Impact Test: 1000G

Physical
Dimension: 214х76х65mm
Weight (without battery): 590g
