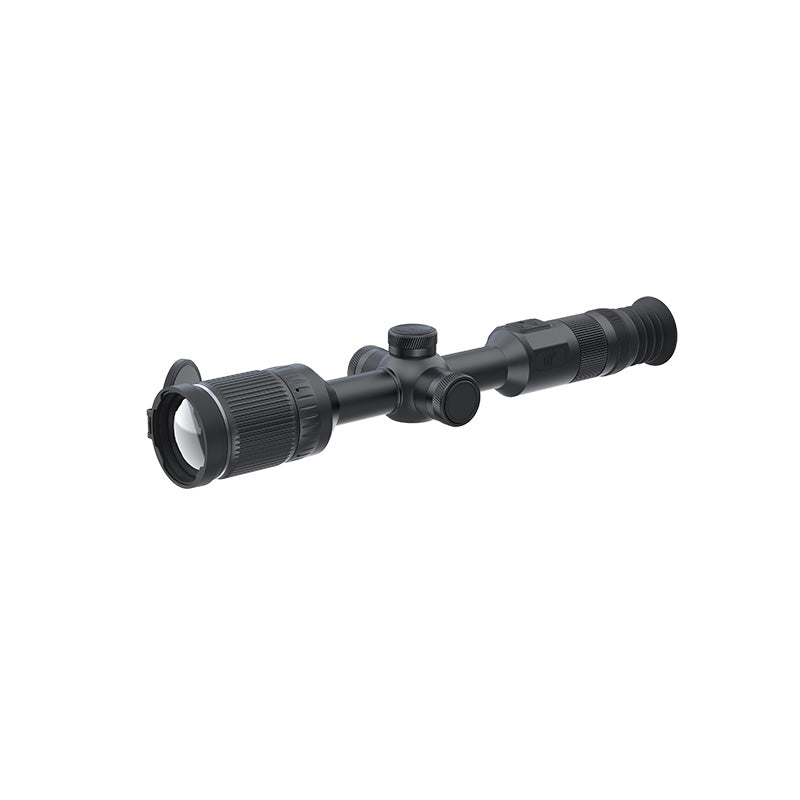

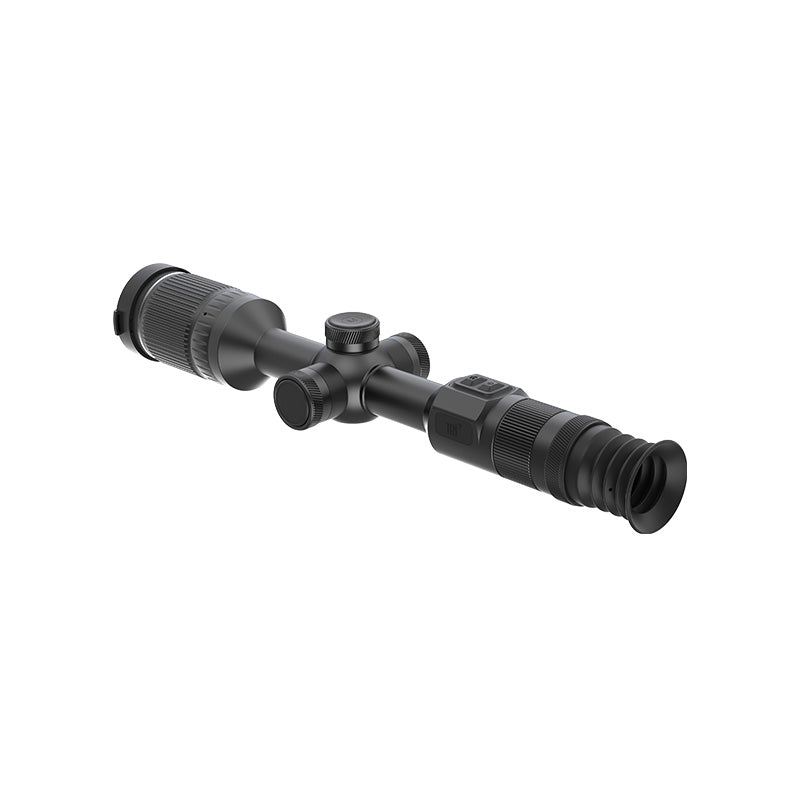

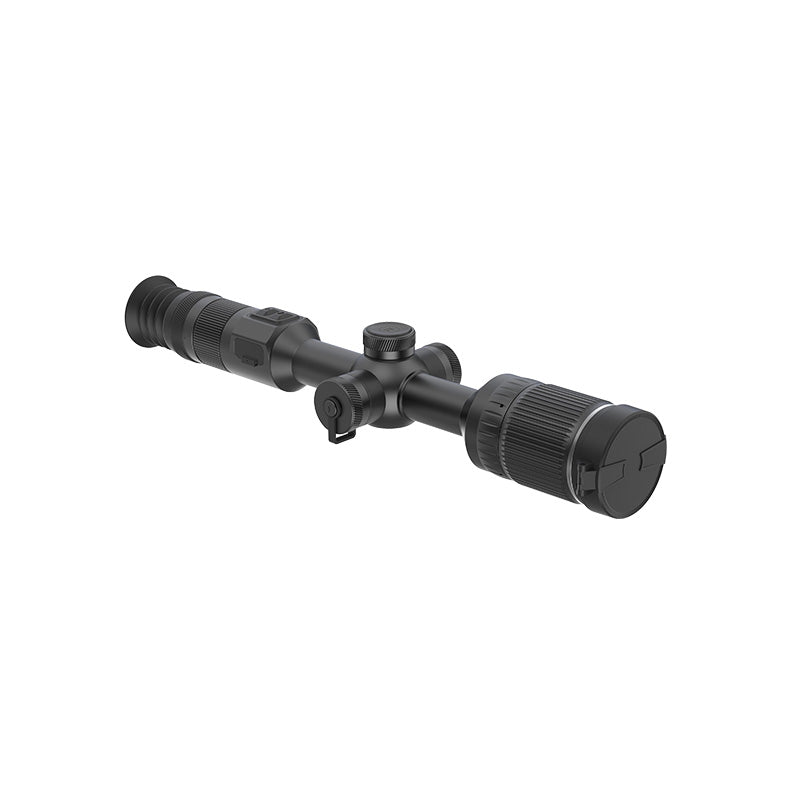

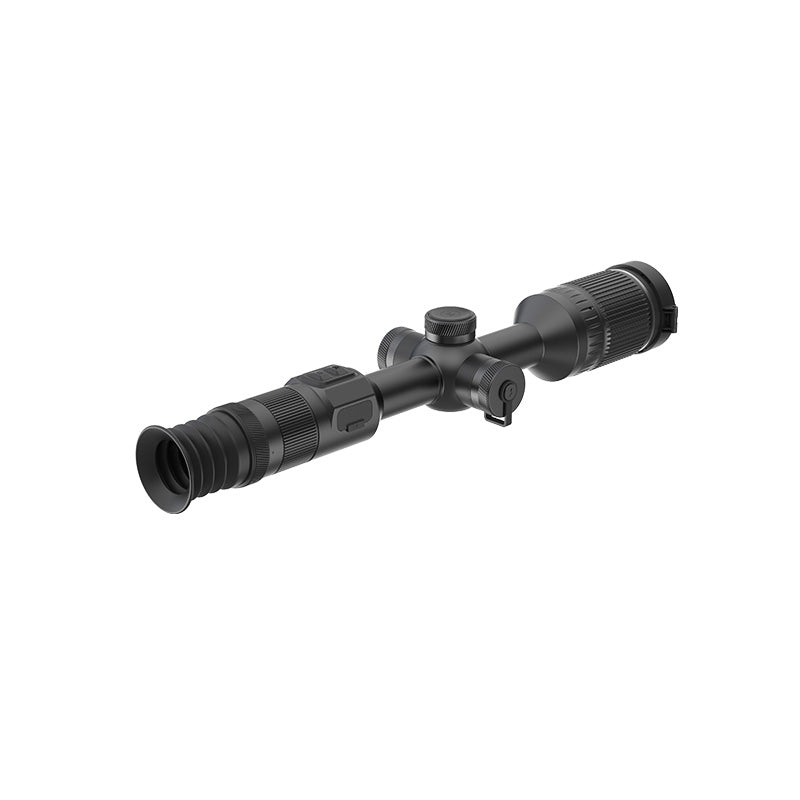

THERMAL IMAGING SIGHT HT-J14

Description

High-definition thermal core, ballistic calculation with millisecond response time. Supports management and recording via the APP, making the records more comprehensive. Zero malfunctions even in extreme environments. Suitable for hunting, military and police, and border defense night vision equipment.

Detector
Type: Uncooled Vox
IR: 640×512
Pixel size: 12μm
NETD: ≤30mK @25℃,F#1.0
Frame Rate: 50Hz

Lens
Focusing mode: Manual
Objective Lens: 50mm/F1.0/8.8°×7.0°
Detection range: 2600m
Magnification: 2.8x
Digital Zoom: 1×/2×/4×/8×

Display
Eye Relief: 25~60mm
Diopter: -4SD~+4SD
Display screen type: OLED
Display resolution: 1024×768
Display size: 0.39 inch

Hardware
LRF: 10m~1200m(905nm)
PIP: Supported
WiFi: Supported
Photo/Video: Supported

System
Colour Palettes: White hot, Black hot, Fire hot, Rainbow, Iron red
Storage (Built-in): 16G EMMC

Power
Battery: Replaceable li-ion batteries 2*18650/3200mAh
Battery life: ≥9h

Environmental
Working temperature: -40℃~+60℃
Waterproof Rating: IP66
Impact Test: 600G

Physical
Dimension: 268.9*91*64.3 mm
Weight (without battery): 868.3g
